Why This WPC Extrusion Mold Is Perfect for Custom Wpc Decking Profile Extrusion

Look, anyone can buy a standard off-the-shelf die and push out basic square hollow boards. But when you're stepping into custom WPC decking profile extrusion, the game changes entirely. You're dealing with unique embossing patterns, specific wall thicknesses for load-bearing, or maybe an entirely new interlocking hidden-clip system. The catch is, most standard molds just can't handle the thermal stress and material friction of these complex geometries over a long run.

We've seen that roughly 70% of our customers who switch to custom dies initially worry about the upfront cost. It's generally about 15-20% more expensive upfront compared to basic catalog molds. But here's what we've noticed: the ROI kicks in fast. Why? Because you stop losing money on scrap material and machine downtime. A precision CNC-machined steel die keeps your melt pressure stable. That means your decking comes out looking identical on hour 1 and hour 8,000. Sound too good to be true? It's not, as long as the steel holds up.

Key Features for Custom Wpc Decking Profile Extrusion

• Cr12MoV Tool Steel Core: Frankly, this is the only way to go for high-volume decking. It resists the abrasive glass fibers in WPC mixes way better than standard 45# steel. You get a 10,000+ hours lifespan, though realistically it depends on your specific wood-plastic ratio.

• 0.02mm CNC Tolerance: When you're trying to keep a 2mm wall thickness perfectly uniform across a 150mm wide board, every micron counts. This precision prevents those annoying weak spots that cause boards to snap during installation.

• Optimized Flow Channels: We don't just drill holes. The internal manifold is engineered to balance material flow. This eliminates weld lines and ensures your custom wood-grain embossing comes out crisp, not blurry.

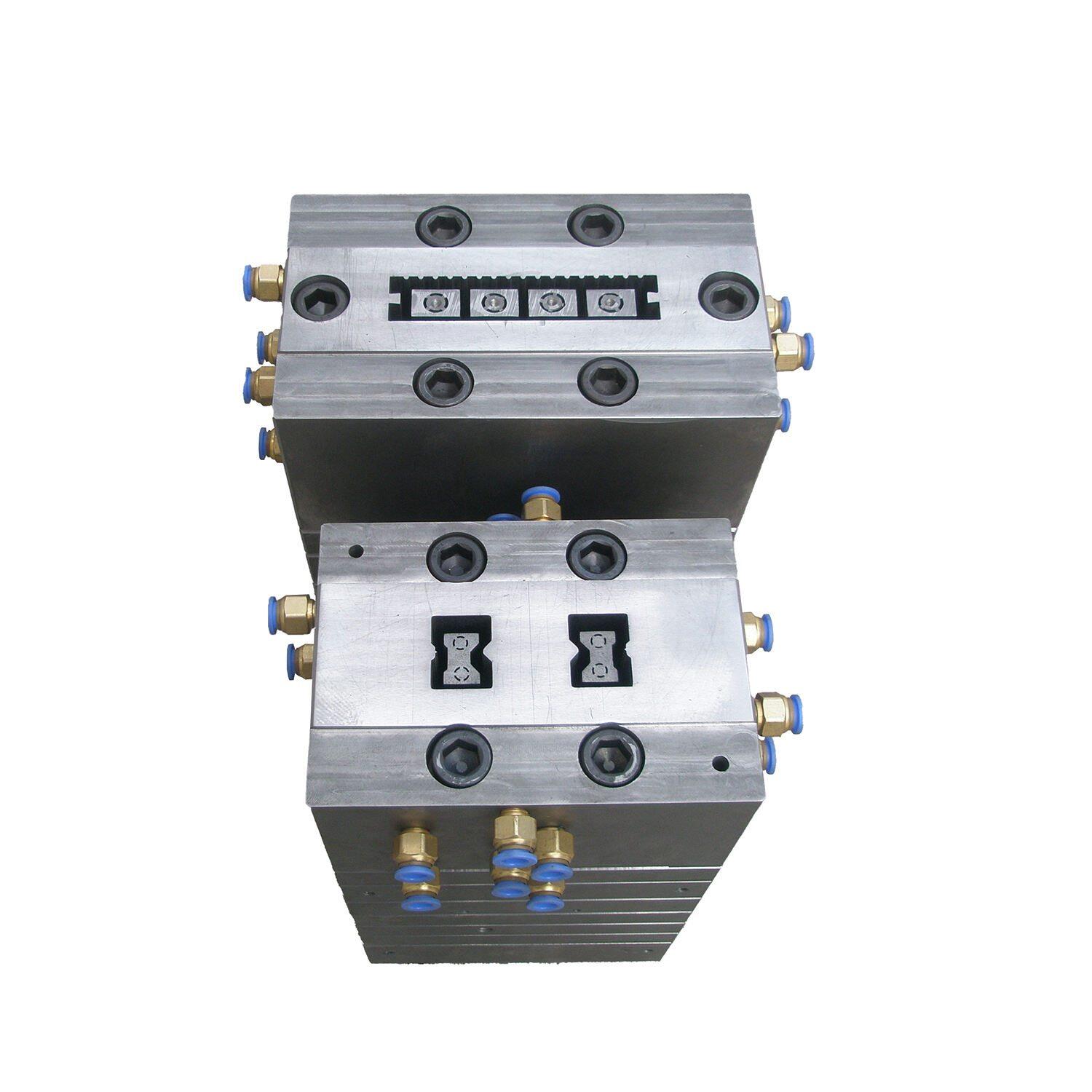

• Multi-Cavity Flexibility: Need to run solid and hollow decking profiles on the same extruder line? We can design quick-change die heads. It cuts changeover time from 3 hours down to about 45 minutes.

• Deep Nitriding & Polishing: The flow paths are polished to a mirror finish and then hardened. This reduces friction, meaning your extruder motor doesn't have to work as hard, saving roughly 10-15% on energy costs per shift.

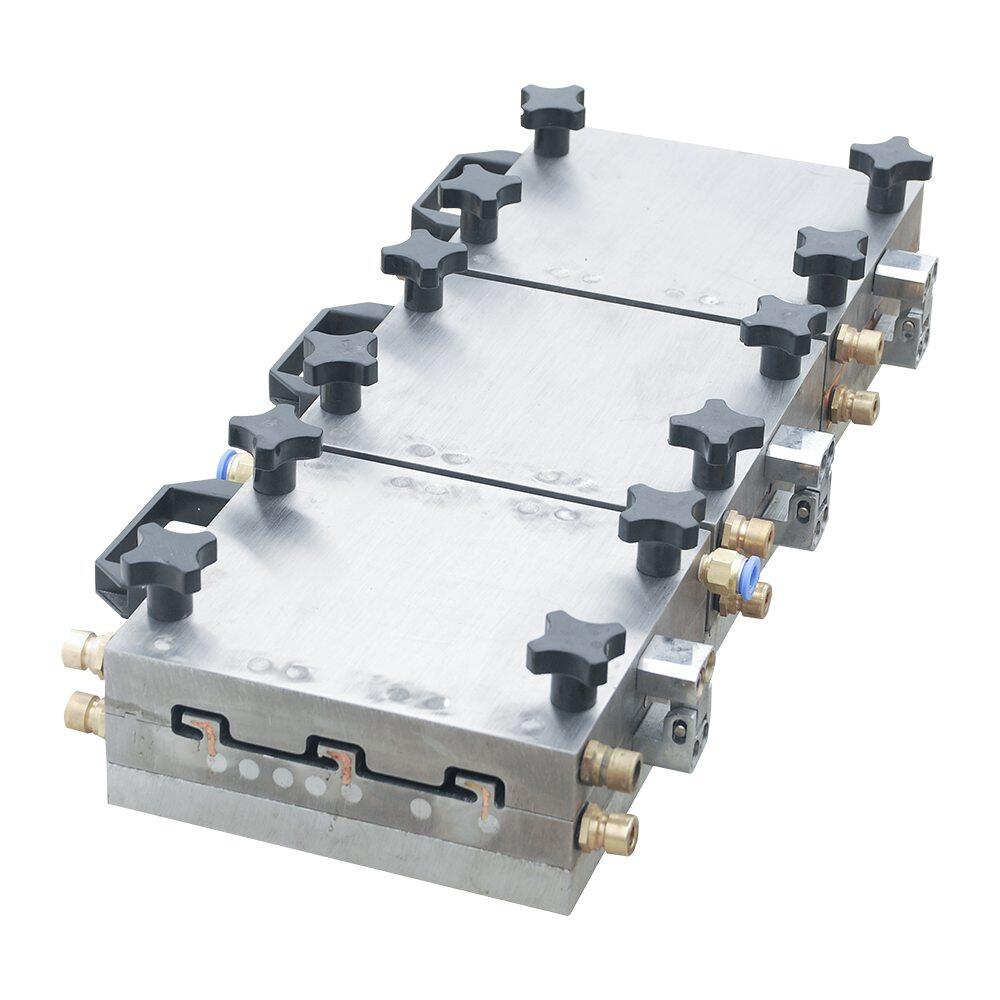

• Thermal Stability Design: Custom decking often requires specific cooling rates to prevent warping. Our dies are built with integrated water-cooling channels that keep the die lip temperature rock solid.

Product Parameters

Product Details

Let's be honest, the material science behind a WPC extrusion mold is where the real magic happens. Most budget suppliers cut corners by using softer steels and skipping the deep nitriding process. They look fine on day one. But after pushing 3,000 tons of abrasive bamboo-plastic composite through the die, the flow channels start wearing. Suddenly, your decking thickness varies by 0.5mm. The catch is, by then, you've already shipped a batch of defective boards to a contractor.

We engineer our dies from Cr12MoV steel because it offers the perfect balance of toughness and wear resistance. After rough CNC machining, we heat-treat it to HRC 58-62. Then comes the deep nitriding. This creates a hardened surface layer that's practically immune to the silica and wood flour in your WPC recipe.

But does it actually hold up in real life? From what we've installed across 50+ countries, yes. One of our clients in Southeast Asia was struggling with a 140x22mm hollow decking profile. The walls kept collapsing on the cooling table. We redesigned the die with a more balanced internal spider mandrel and tighter 0.02mm tolerances. Their scrap rate dropped from 12% to under 1.5%. That's the kind of difference a proper custom die makes.

Applications

This isn't just for massive, multi-line extrusion plants. We build these custom WPC decking profile extrusion molds for a wide range of operations.

Brand owners looking to launch a proprietary decking line use our dies to create unique, patent-protected profiles. Contractors who do large-scale commercial boardwalks often work with us to tweak the wall thickness, shaving off 1mm to reduce material costs without sacrificing the 25-year structural warranty. Even architectural firms designing complex curved decking systems rely on our precision tooling to get those exact interlocking shapes.

Whether you're producing UV Grade 4-5 capped composite boards or basic hollow core decking for residential patios, the die is the heart of your operation. Get the die right, and everything else falls into place.

FAQ

Q: How long does it actually take to get a custom WPC decking mold?
A: Generally speaking, it takes about 25-35 days. But it depends on the complexity. A simple solid profile might be ready in 20 days, while a multi-cavity hollow board with complex cooling channels will push closer to 40 days.

Q: Can you modify an existing die if my profile design changes slightly?
A: Usually, yes. If you just need to adjust the wall thickness or widen the board by a few millimeters, we can often re-machine the die lip. But if you're changing from a hollow to a solid profile, you're better off starting fresh.

Q: What if the die wears out before 10,000 hours?
A: It's rare, but if it happens under normal operating conditions and with the recommended WPC material mix, we'll repair or replace the flow channels at no extra cost. There's no one-size-fits-all warranty, but we stand behind our Cr12MoV steel.

Q: Do you provide 3D flow simulation before machining?
A: Absolutely. For any custom WPC decking profile extrusion, we run a rheological simulation first. This lets us see where the material might stagnate or weld. We tweak the CAD design until the flow is perfect, which saves you from paying for a second prototype die.

Ready to Get Started?

If you're tired of dealing with inconsistent decking profiles and high scrap rates, it's time to upgrade your tooling. Send us your 2D drawings or 3D CAD files for your custom WPC decking profile extrusion. Our engineering team will review the design and get back to you with a detailed quote and production timeline. Let's build a die that actually works as hard as you do.
