Product Overview

Aorai WPC Louvered Privacy Screen introduces a new level of control to outdoor privacy design. Unlike fixed-panel screens that offer only one configuration, our louvered system features rotatable WPC composite slats mounted in a precision-engineered aluminum frame. Each slat rotates through 0-180 degrees with a friction-lock mechanism, giving users instant control over privacy, sunlight, airflow, and views.

When louvers are closed (0° or 180°), the screen provides full visual privacy. At 45°, the screen creates partial privacy while allowing diffused light and cross-ventilation — ideal for poolside areas. At 90° (fully open), the screen becomes virtually transparent, maximizing airflow while still defining the spatial boundary. This dynamic adjustment makes it fundamentally different from fixed privacy panels.

---

Core Advantages

• 0-180° Adjustable Louvers — Each 150×20mm WPC slat rotates on 304 stainless steel pivot pins with a friction-lock mechanism that holds any angle without tools. Users adjust the entire screen's privacy level in seconds.

• Triple-Function Design — Privacy screening (louvers closed), sun shading (partial angle for diffused light), and ventilation panels (louvers open). One product replaces separate privacy screens, shade structures, and windbreaks.

• Dual-Sided Capped Slats — Both faces of every louver are protected by a co-extruded polymer cap — essential for louver applications because both faces are exposed to weather at different times as louvers rotate throughout the day.

• Airfoil Slat Profile — The 150×20mm airfoil cross-section minimizes wind load while maximizing visual coverage when closed. The curved leading edge creates an elegant architectural appearance from every angle.

• Aluminum Frame System — 6063-T5 extruded aluminum frames with 2.0mm wall thickness provide structural rigidity without the weight and corrosion vulnerability of steel. Powder-coated in any RAL color.

---

Technical Specifications

Custom dimensions and louver widths (100mm/200mm) available for project-specific requirements.

---

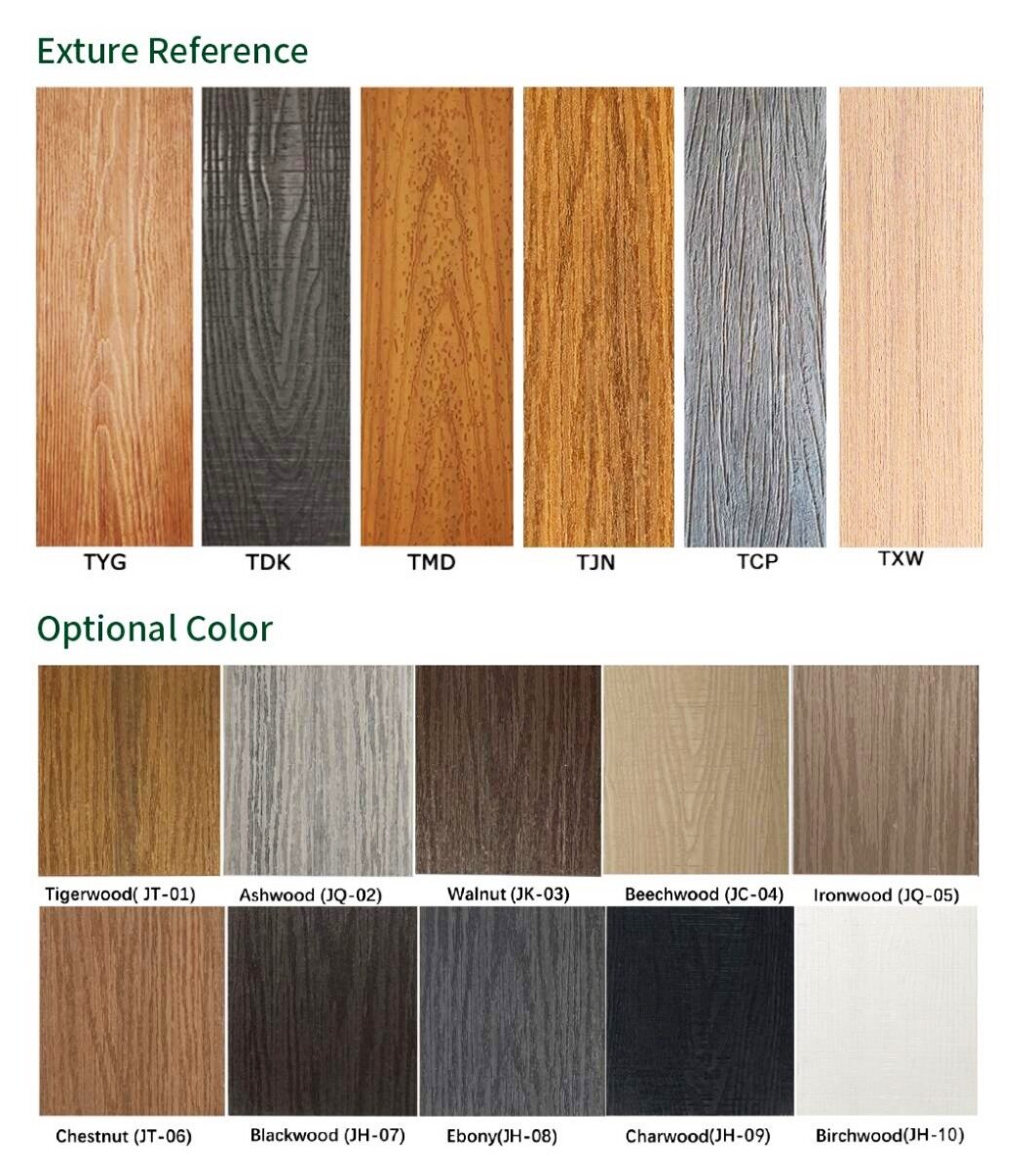

Available Colors & Configurations

Custom RAL frame colors with MOQ 50 panels.

---

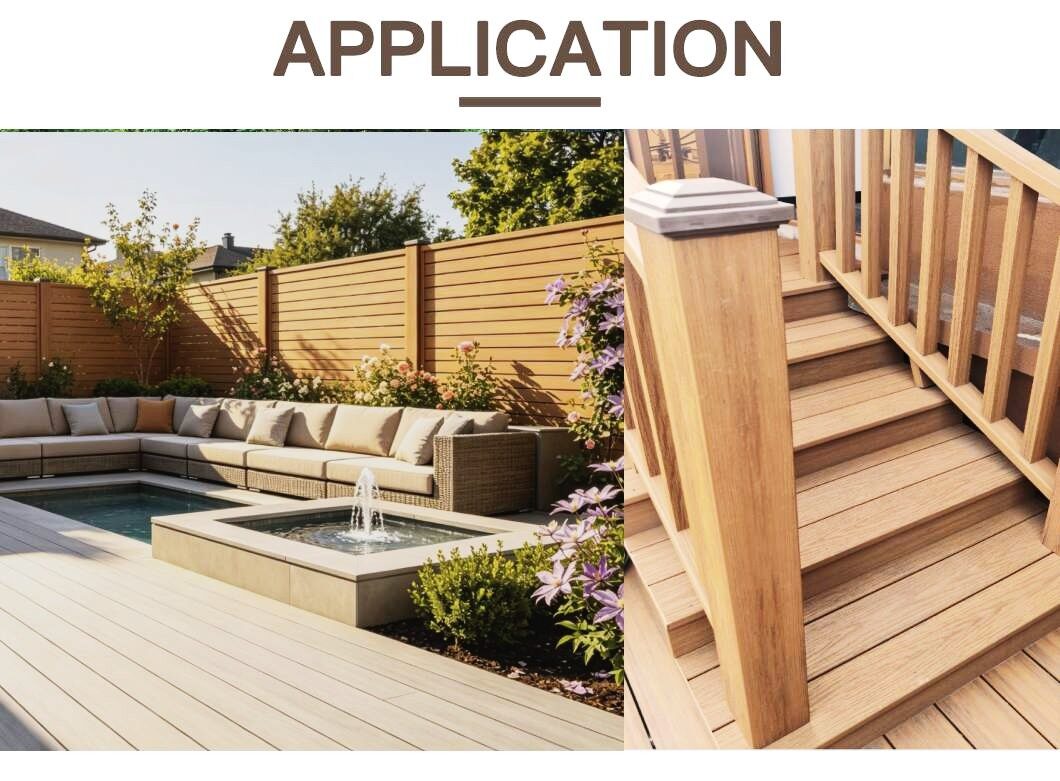

Application Scenarios

Residential

• Patio Privacy Screen — Install between your patio and neighboring property for instant, adjustable privacy. Close for seclusion, open to enjoy the view

• Poolside Enclosure — Provides privacy while allowing airflow to reduce humidity. Waterproof WPC withstands constant pool splash and chemical exposure

• Balcony Divider — In multi-story buildings, adjustable screens between balconies give privacy without blocking shared light. Lightweight panels mount directly to walls or railings

Commercial

• Restaurant Outdoor Dining Privacy — Semi-private dining zones where customers want wind shelter and visual separation while maintaining open-air atmosphere

• Hotel Pool & Spa Screening — Staff can configure privacy levels for different events — full privacy for private functions, open for general guest use

• Commercial Terrace Partition — Divide shared rooftop terraces into defined zones with screening that adapts to different tenant needs

---

Customization Options

• Custom Panel Sizes — Non-standard widths and heights up to 1500×3000mm

• Motorized Operation — Optional electric motor with remote control or smart home integration for automated sun-tracking

• Curved Configurations — Curved frame sections for radius screen walls around circular patios or curved pool edges

• Integrated Planting Trellis — Alternate louver panels with trellis panels for combined screening and climbing plant support

---

Installation Guide

• Wall-Mounted: Frame brackets bolt to existing walls (brick, concrete, or WPC wall panels). Suitable for screens up to 2400mm height on solid substrate

• Post-Mounted: Panels mount between WPC or aluminum posts for freestanding screen walls. Posts surface-mounted to concrete pads or embedded into ground footings

• Freestanding with Ground Stakes: Extended frame legs with ground stake inserts for semi-permanent installations in soil. Suitable for screens up to 1800mm in moderate wind

Assembly: Frame connection → mount to chosen system → insert louver slats into pivot channels → install pivot pins → test rotation → connect adjacent panels with concealed brackets.

---

Warranty & Service

• 15-Year Structural Warranty — Covers WPC slats, aluminum frame, and pivot hardware against defects and structural failure

• 15-Year Surface Warranty — Capped surface guaranteed against excessive fading and degradation

• Pivot Mechanism Warranty — 10-year warranty on rotation mechanism against stiffening or failure

• Replacement Parts — Individual slats and pivot pins available for the full warranty period

---

Why Choose Aorai WPC Louvered Privacy Screen?

• Patented Louver Mechanism — Friction-lock pivot holds position silently and indefinitely without mechanical latches or detents that wear out

• Dual-Sided Capping Standard — Essential for louver applications. Both faces exposed as louvers rotate, making dual-sided protection mandatory

• Aluminum Frame as Standard — We specify extruded aluminum frames as standard — not powder-coated steel with aluminum as an expensive upgrade

• Complementary Product Family — Pairs with our solid WPC fencing for permanent privacy areas and WPC pergola for overhead coverage

Frequently Asked Questions

Q1: How much privacy when louvers are fully closed?

At 0°, the 150mm-wide slats overlap at the frame, creating a solid barrier with no visible gaps — complete visual privacy equivalent to a solid panel wall. Air infiltration is minimal, approximately 5% of open airflow.

Q2: Can louvers block sunlight while allowing airflow?

Yes. At 30-45° angle, direct sunlight is blocked by the slat faces while gaps between angled slats allow air to pass freely. This partial-angle configuration blocks approximately 70% of direct solar radiation while maintaining 60% of maximum airflow — ideal for west-facing patios.

Q3: Will the louver mechanism become stiff over time?

The pivot uses 304 stainless steel pins in precision-machined aluminum channels with no bearings, springs, or plastic components to degrade. The friction-lock maintains consistent resistance through the 15-year rated life. We recommend an annual wipe with silicone-based lubricant in salt-air environments.

Q4: How does it perform in high-wind areas?

In ventilated position (louvers at 90°), the system is rated for 100km/h with proper mounting. In closed position, we recommend louvers be partially opened (15-20°) if winds exceed 80km/h for pressure equalization while maintaining visual privacy.

Q5: Can it be used as a room divider?

Absolutely. The post-mount option creates freestanding screen walls ideal for dividing covered outdoor spaces — pergola dining areas, pool pavilions — into distinct functional zones with adjustable privacy between each zone.

Q6: What is the difference between louvered screens and solid WPC fencing?

Louvered screens provide adjustable privacy, sun control, and airflow — a dynamic screen that adapts to changing needs. Solid WPC fencing panels provide fixed, permanent privacy with no moving parts. Many projects use both: solid fencing for the boundary and louvered screens for zone-level privacy control within the boundary.
